Product Overview

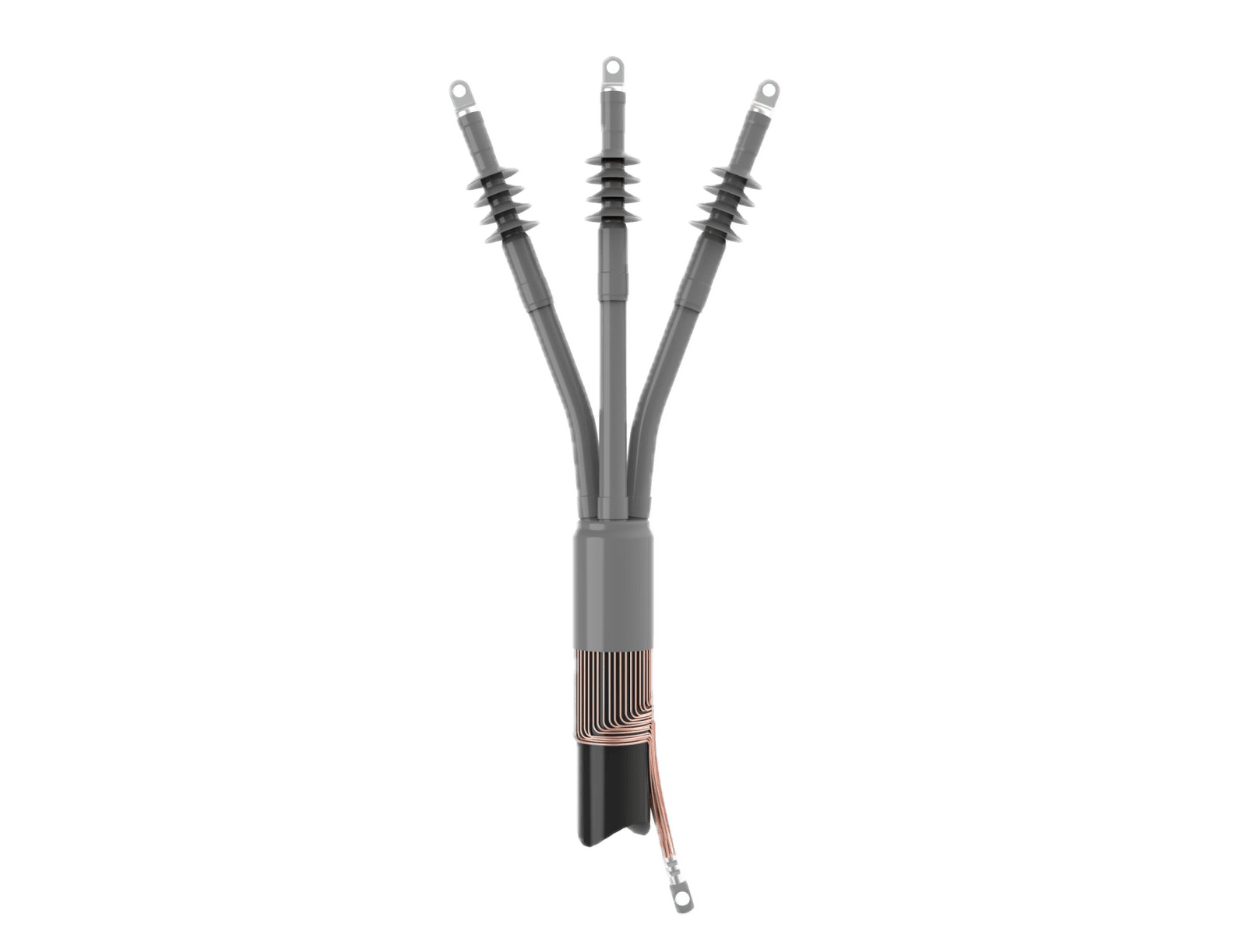

The CCIT and CCOT Series from COMPAQ International offer a high-performance cold shrink termination solution for XLPE and EPR insulated cables rated up to 42kV. These kits utilize pre-expanded silicone rubber components that shrink into position upon installation—completely eliminating the need for heat, flame, or special tools.
Designed for fast, safe, and consistent termination in a variety of field environments, the CCIT/CCOT Series is trusted across industrial, utility, and renewable energy sectors for its ease of application and proven insulation performance.
Reduces safety risk and eliminates the need for hot work permits or heat guns.
Simplifies installation and reduces risk of component misalignment.
Provides excellent resistance to tracking, splitting, and moisture.
Compatible with both armoured and unarmoured cable constructions.
Performs in polluted, humid, and UV-exposed environments without degradation.
| Parameter | Specification |
|---|---|
| Voltage Range | Up to 42kV |
| Cable Types | XLPE / EPR insulated |
| Core Configuration | Single-core and three-core |
| Installation Type | Indoor (CCIT) / Outdoor (CCOT) |
| Material Composition | High-performance pre-expanded silicone rubber |
| Cable Construction | Armoured (SWA/AWA) and Unarmoured |
| Lug Compatibility | Mechanical and compression lugs (optional) |
| Installation Method | Cold shrink — no heat or tools required |
| Compliance Standards | IEC 60502-4, CENELEC HD 629.1, IS 13573-2 |
Applications
Selection Criteria
To identify the correct kit configuration, kindly confirm the following project details:
01
Voltage class
02
Number of cores
03
Conductor material and size
04
Armour type (if applicable)
05
Indoor or outdoor application environment
06
Connector preference (mechanical or compression)
